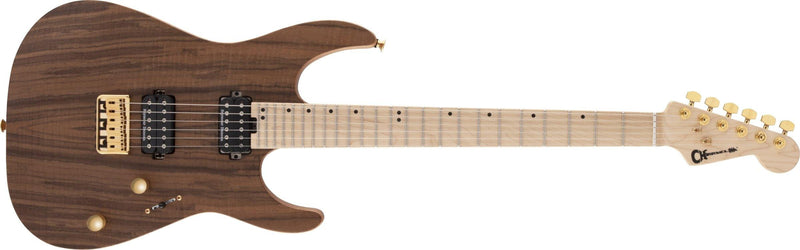

Charvel’s Pro-Mod DK24 HH HT M Mahogany with Figured Walnut is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.

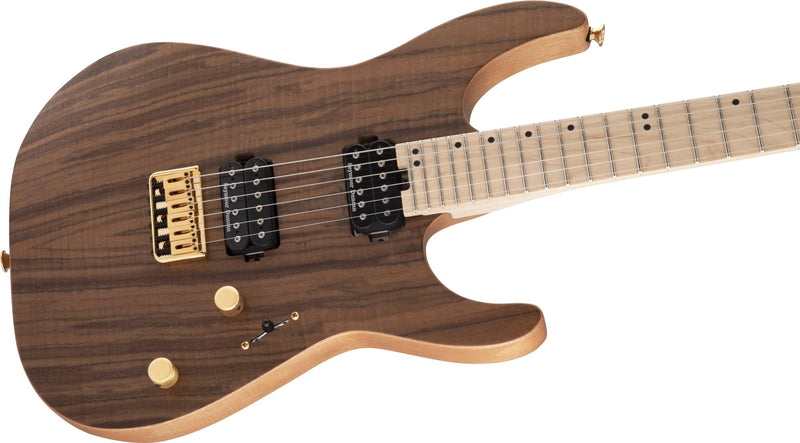

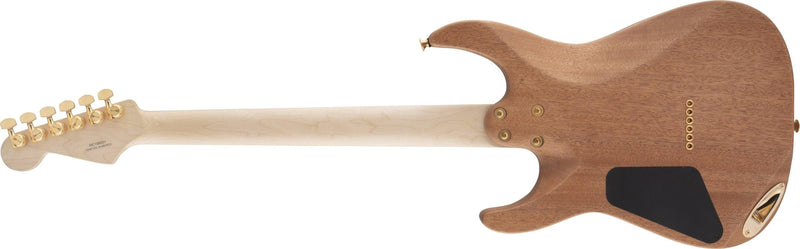

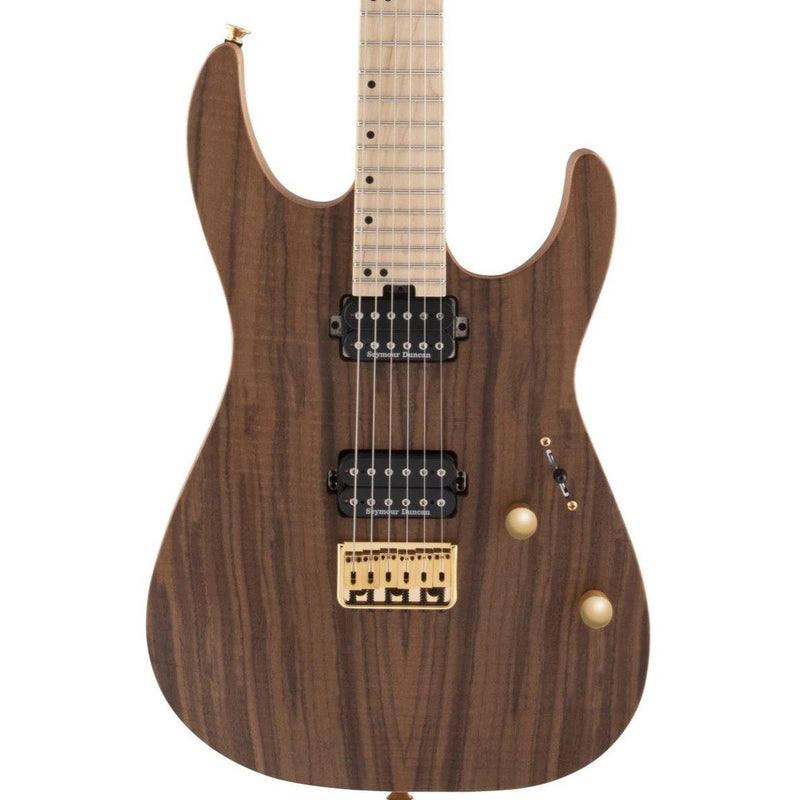

Loaded with premium features, this DK24 model has a sleek Dinky™ body constructed from mahogany with a stunning figured walnut top in a Natural finish with gold hardware. The sculpted shredder’s cut heel and scalloped lower back bout make access to the upper registers seamless, while the bolt-on maple neck features graphite reinforcement for rock-solid stability. The silky-smooth hand-rubbed satin urethane finish on the back of the neck grants sublime playability, while the conveniently located heel-mount truss rod adjustment wheel makes for quick neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius maple fingerboard features comfortable rolled edges, 24 jumbo frets and offset black dot inlays.
This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ SH-10B bridge pickup and direct mount Seymour Duncan Alnico II™ Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the Pro-Mod DK24 HH HT M Mahogany with Figured Walnut also offers premium modern features such as a five-way blade pickup switch, dome-style control knobs for the volume and no-load tone controls, Charvel® HT6 string-through-body hardtail bridge, die-cast locking tuners and more.
Product Specs
- SERIES : Pro-Mod
- ORIENTATION : Right-Hand
- COLOR : Natural
- COUNTRY OF ORIGIN : MX
- HEADSTOCK : Licensed Fender® Stratocaster®
- NECK MATERIAL : Maple
- NECK FINISH : Hand-Rubbed Satin Urethane
- NECK SHAPE : Speed Neck with Rolled Fingerboard Edges
- NECK CONSTRUCTION : Bolt-On with Graphite Reinforcement
- FINGERBOARD RADIUS : 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- FINGERBOARD MATERIAL : Maple
- POSITION INLAYS : Offset Black Dot
- NUMBER OF FRETS : 24
- TRUSS ROD : Dual-Action with Wheel
- TRUSS ROD NUT : Heel-Mount Truss Rod Adjustment Wheel
- STRING NUT : White Plastic
- NUT WIDTH : 1.6875" (42.86 mm)
- NUT MATERIAL : White Plastic
- BODY : Mahogany
- BODY FINISH : Satin
- BODY SHAPE : Dinky™
- BODY TOP : Figured Walnut
- BODY STYLE : Solid Body
- BODY MATERIAL : Mahogany
- BRIDGE : Charvel® HT6 String-Through-Body Hardtail
- PICKGUARD : None
- PICKUP COVERS : Black
- CONTROL KNOBS : Dome-Style
- SWITCH TIP : Black
- HARDWARE FINISH : Gold

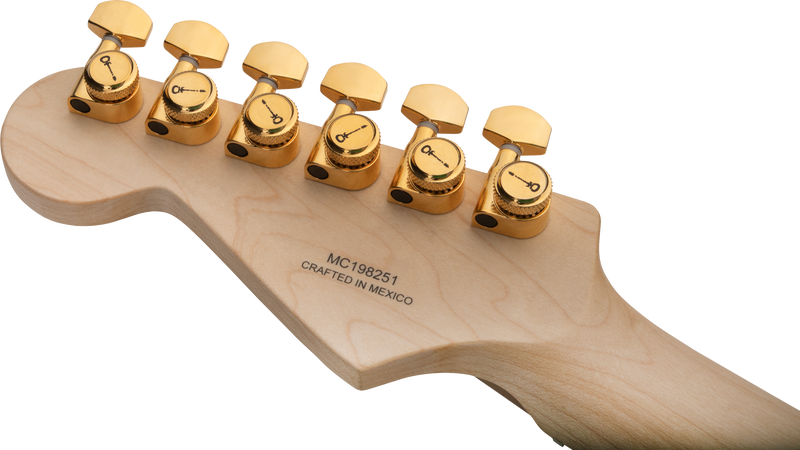

- TUNING MACHINES : Charvel®-Branded Die-Cast Locking
- STRING TREES : Dual Modern Disc String Trees
- STRINGS : Nickel Plated Steel (.009-.042 Gauges)
- NECK PLATE : None - 4-Bolt Sculpted Heel
- STRAP BUTTONS : Standard
- BRIDGE PICKUP : Seymour Duncan® Full Shred™ SH-10B
- NECK PICKUP : Seymour Duncan® Alnico II Pro™ APH-1N
- PICKUP CONFIGURATION : HH
- CONTROLS : Volume, No-Load Tone
- SWITCHING : 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
- FRET SIZE : Jumbo
- SCALE LENGTH : 25.5" (64.77 cm)
