Aqueduct® is a vintage-inspired pitch vibrato with eight modulation modes delivering synth-like sonar pulses, touch-sensitive frequency modulation, gentle rolling pitch-wobbles, steady kosmische pulsations, rapid trills, slimy sonic squiggles, whammy bar wiggles, pitch bends, pseudo-flange, and anything else your pitch-warped brain can picture in your murky mind’s eye.
Sine: The smoothest and most subtle of all waveforms, sine waves are most commonly associated with classic amp-like vibrato. Plug in, turn on, and commence the Chooglin’.
Triangle: Triangle waves have a sharper rise and fall than sine waves with a more pronounced pitch bend at the peak of each LFO cycle.
Ramp: Like a triangle wave with a twist. The Ramp waveform has a sharp sonar pulse followed by a rapid downward slope with a synthesizer-like sustain and release. This is where things start to get a little weird.
Square: Square waves are the most rigid and abrupt of the waveforms. Rather than gliding smoothly between pitches, square waves produce an instant on-or-off transition between notes. Use this mode for trills when you get tired of doing hammer-ons and pull-offs.
Random: This waveform isn’t a waveform at all as much as it’s a drunken master of modulation who slurs your notes into an unpredictable assortment of greasy pitch-bends before disappearing at last call and leaving you stuck with the tab. It has a “warped record” effect at low Depth settings and becomes sloppier and more randomized as you increase the Depth control.
Env D: This is Envelope-Controlled Depth mode. The waveshape is set to a sine wave, the speed of which may be adjusted using the Rate control. The Depth control sets the sensitivity of the envelope - the point at which the effect kicks in as you play. In this mode, your pick attack sets the intensity of the modulation. The harder you dig in, the more pronounced the effect. Try it during your next motorik jam.
Env R: This is Envelope-Controlled Rate mode. In this mode, the input level (i.e. pick attack) controls the LFO rate. The LFO uses a sine waveshape. Play harder for faster modulation or lay low for slower modulation speeds. The Rate control adjusts the sensitivity of the envelope. Depth selects the LFO intensity.
Env P: This is Envelope-Controlled Pitch mode, which we’ve lovingly nicknamed “The My Bloody Valentine setting.” If your instrument doesn’t have a tremolo bar, it does now. In this mode, the LFO is set to a sine waveshape, and frequency modulation is controlled by the dynamics of your pick attack and not the LFO. Do yourself a favor and try this one with Flexi-Switching™.
Depth sets the wet/dry mix. This is the only mode that contains a wet/dry mix and may be set to taste to create touch-sensitive dynamic vibrato, chorus, flanger, or tactile pitch drops. Full counterclockwise is all dry, full clockwise is all wet. With this control set to noon you will get a 50/50 mix with a small amount of phase cancellation.
Rate sets the sensitivity and overall range of the pitch bend.

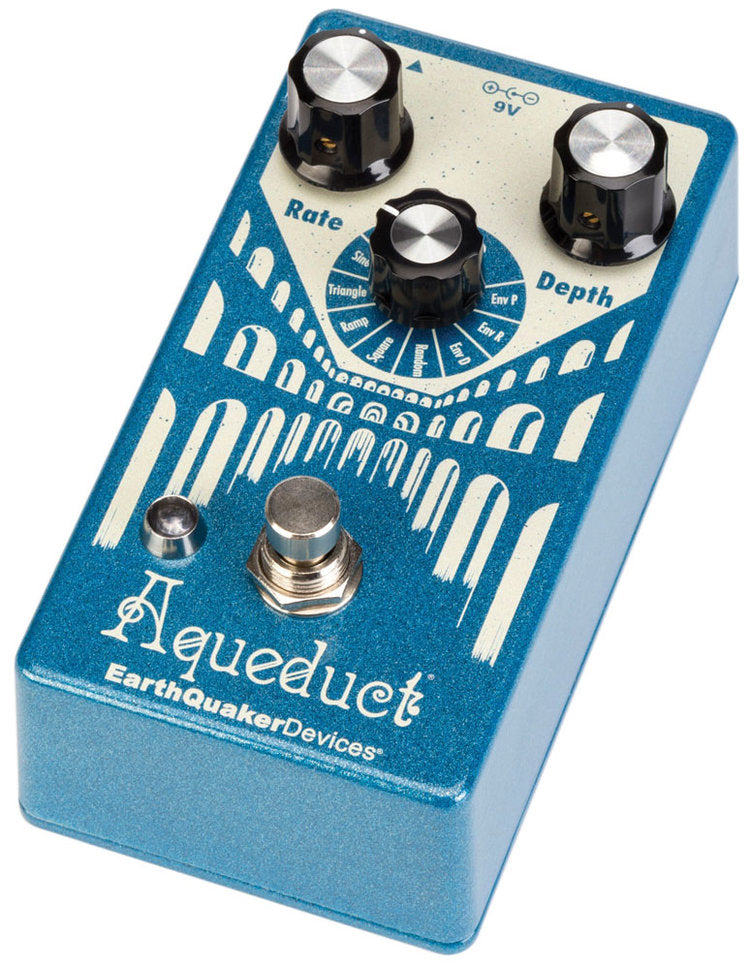

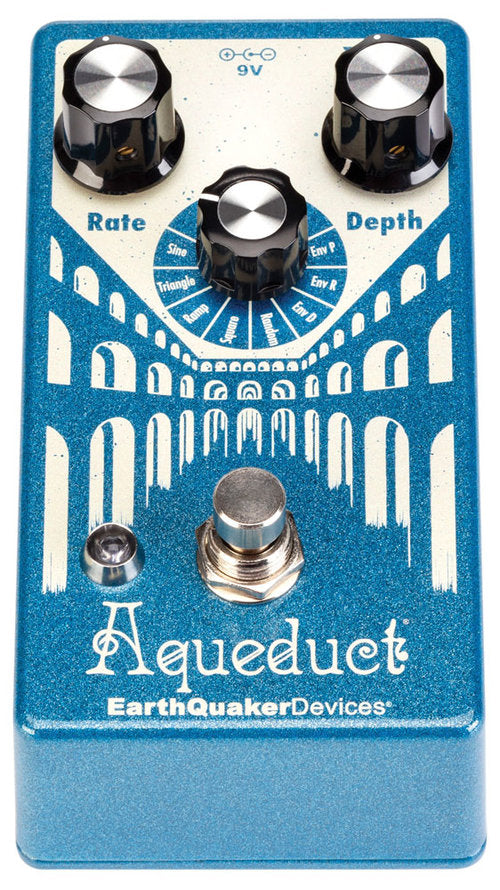

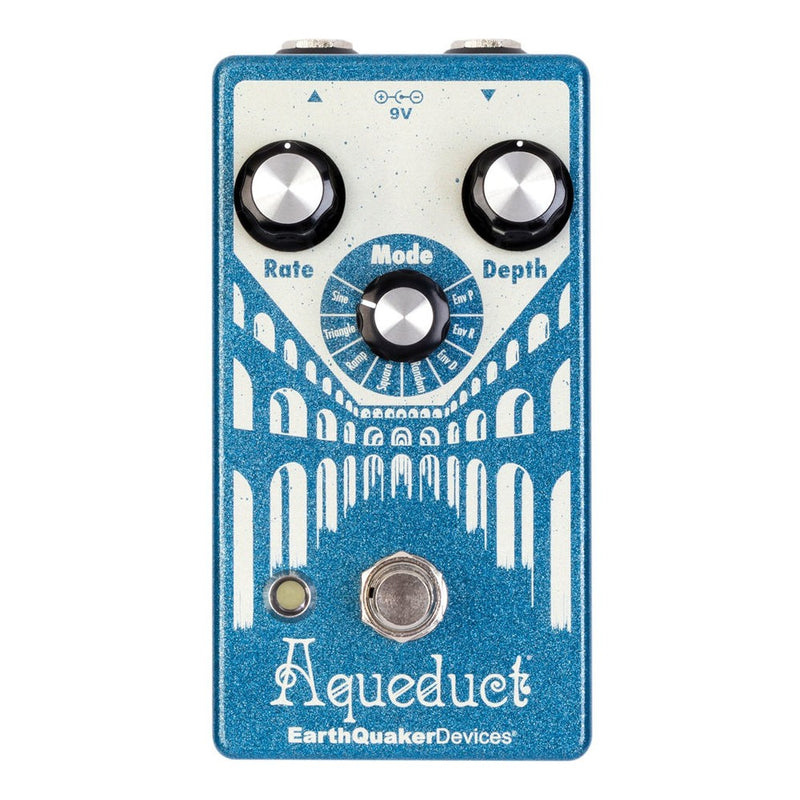

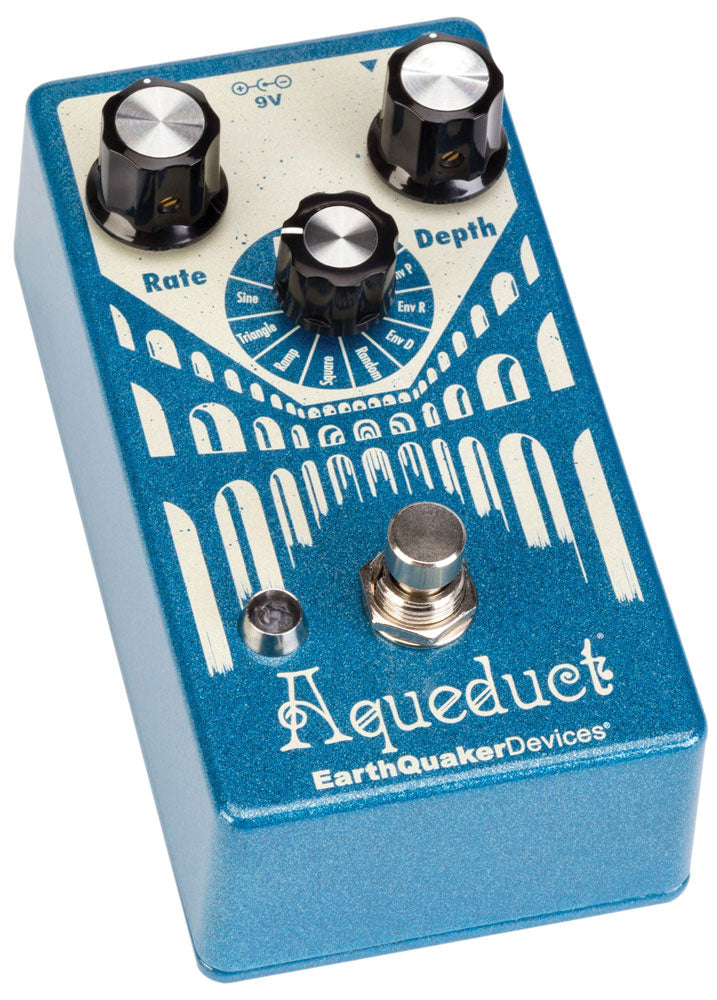

ControlsThe controls are simple. Rate (1) adjusts the LFO speed which controls how quickly the pitch rises and falls. Depth (2) controls the LFO amplitude, adjusting the intensity of the vibrato effect. The rotary switch labeled Mode (3) selects between one of eight LFO waveshape and envelope combinations which drastically alter the character of the modulation and make Aqueduct adaptable to nearly any musical situation.
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 68 mA
Input Impedance: 1 MΩ
Output Impedance: <10 kΩ
Flexi-Switch® Technology: This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.

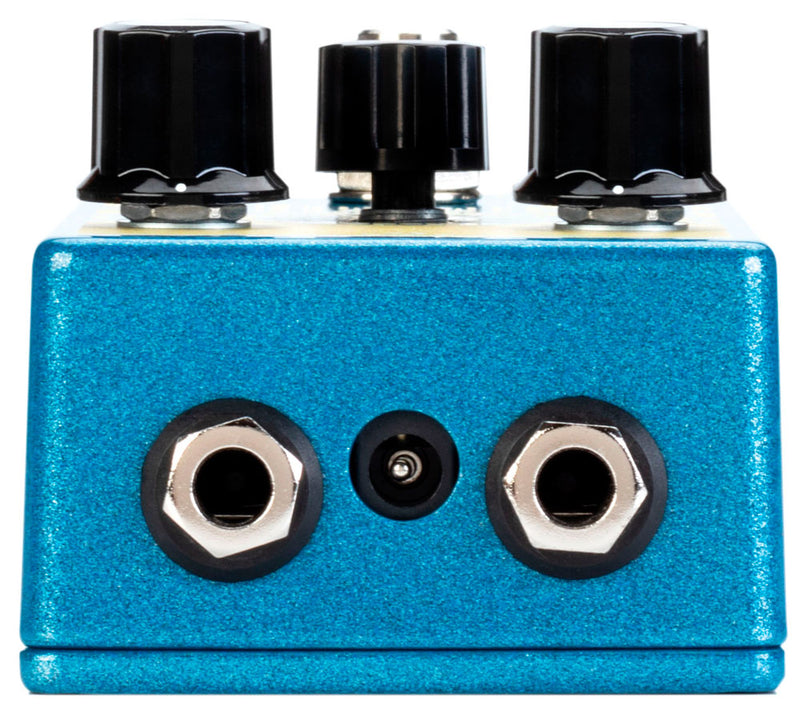

Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
