6. Ratio Selector Switch: Selects delay subdivisions when time is set by the “Tap” switch.
7. Decay: Controls the decay length of the reverb, short decay counterclockwise, long cavernous decay clockwise.
8. Toggle Switch (Mode Selector)
Normal: This is the “standard” delay and reverb mode
Reverse: This is reverse delay mode with “standard” reverb
Swell: This is the volume swell mode
9. Mix: This is the volume control for the reverb. Blends in the wet with dry until 1 o’clock, 1 o’clock to 3 o’clock boosts the wet signal over the dry and 3 o’clock up brings down dry until it is fully wet when all the way up.
Tech Specs
List Price: $299.00
Dimensions: 4.65 x 4.15 x 2.25 in. (118 x 105 x 57 mm) with knobs
Current Draw: 410 mA
Input Impedance: 1 MΩ
Output Impedance: 100 Ω
S/N Ratio: 115dB typical
24-bit 96kHz A/D & D/A converters
All analog dry signal path
All digital wet signal path with 20Hz – 20kHz frequency response

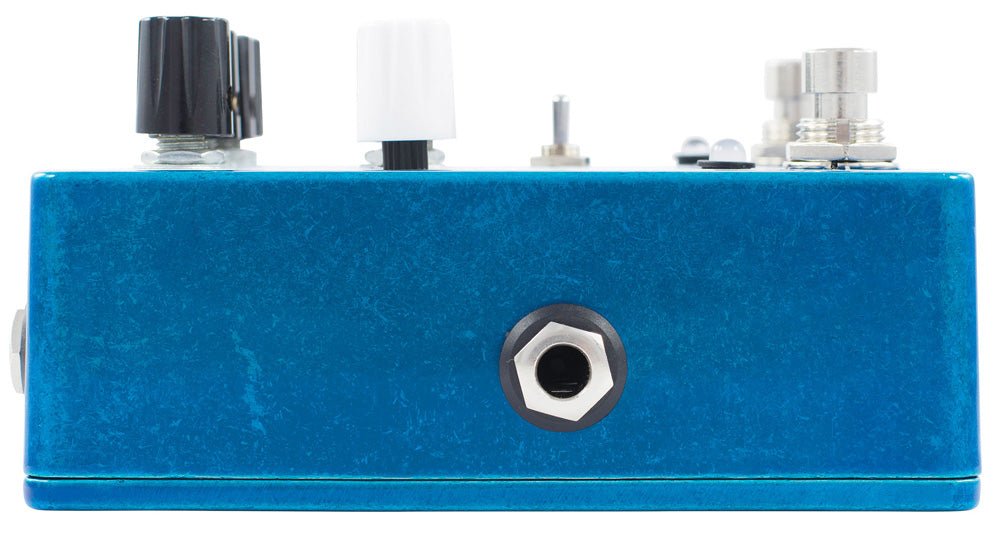

Expression Jack: The expression jack is located on the west side of the pedal. It is a TRS jack with the tip acting as the wiper.
Flexi-Switch® Technology: This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
-
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
-
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.
Power: For best results, please use the included 9v center-negative 1-amp DC power supply.
